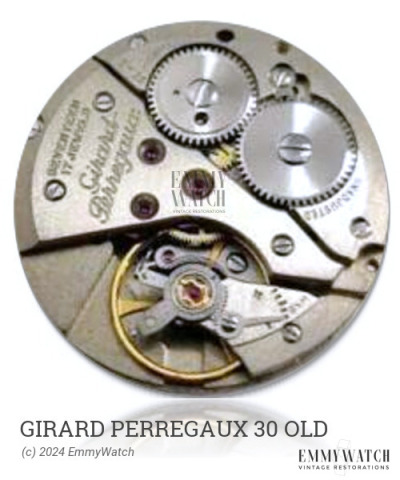

Girard Perregaux 30 OLD
Ligne: 5.75 x 8.5'''
Jewels: 15/16
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 12.8 x 19.6 mm
Height: 3.8 mm
Hands: 1.10 x 0.60 mm
The Girard Perregaux 30 OLD mechanical watch movement features a patented space-saving train design in two layers. It also offers an optional bimetallic screw balance. The specific differences between the 80, 86, 93, 113, 114, 116, 117, 128, 133, 134, 144, 146, 148, 153, 157, 167, and 177 variants are currently unknown. The movement is a manual wind type and was commonly used around the 1930s.
The Girard Perregaux 30 OLD features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.080 x 260 x 7.5 mm | GR3923 | Manual | Buy mainspring |
| 1.45 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
