General 90A
(Helvetia)
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1908-1913
Diameter: 39.75 mm
Height: 5.0 mm
Hands: 1.50 x 0.92 / 0.26 mm

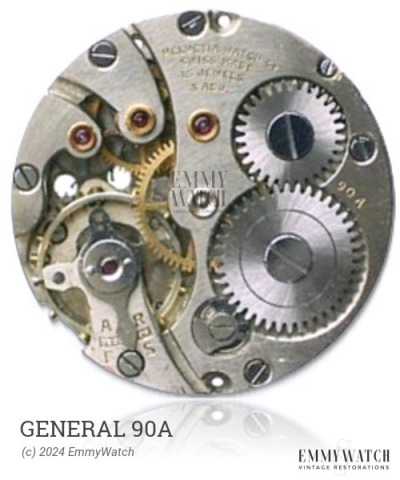

The General 90A watch movement was produced between 1908 and 1913, with 25,000 units manufactured during this period. It features a hunter calibre, model 2, with a bimetallic screw balance and a Breguet hairspring. The movement includes a negative stem mechanism with an adjustable switching point. Additionally, it possesses the following functions: stem winding and setting, and a sub-second hand.
The General 90A features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.05 x 0.200 x 520 x 15.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

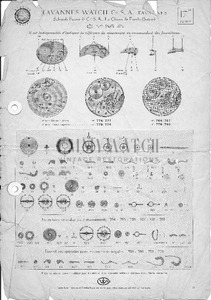

Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
