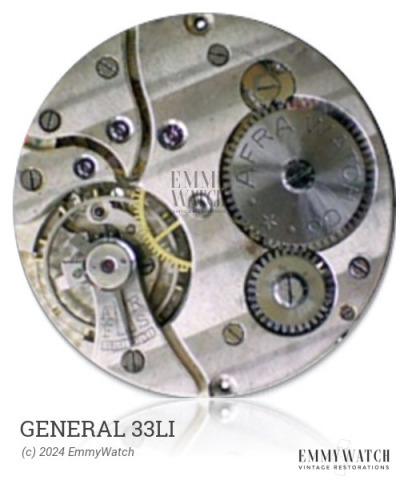

General 33LI
(Helvetia)
Ligne: 18.5'''
Jewels: 15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 41.65 mm
Height: 4.2 mm
Hands: 1.98 x 1.12 / 0.26 mm
The General 33LI is an open face calibre watch movement, featuring stem wind and set functionality. It has a sub-second display and is likely equipped with an optional Breguet hairspring. The movement's design may include varying bridge shapes and a probably left-handed ratchet-wheel screw. It falls within a set of catalog designations such as 233, 237, 241, 247, 253, 257, 263, 269, 275, 281, 443, 453, 475, and 481, although the specific differences between these designations are not known. The General 33LI is estimated to have been used around 1945.
The General 33LI features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.210 x 490 x 17.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.210 x 480 x 15.5 mm | GR4365 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
