General 32A
(Helvetia)
Ligne: 19'''
Jewels: 15/16
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1889-1927
Diameter: 43.15 mm
Height: 5.2 mm
Hands: 1.90 x 1.00 / 0.26 mm

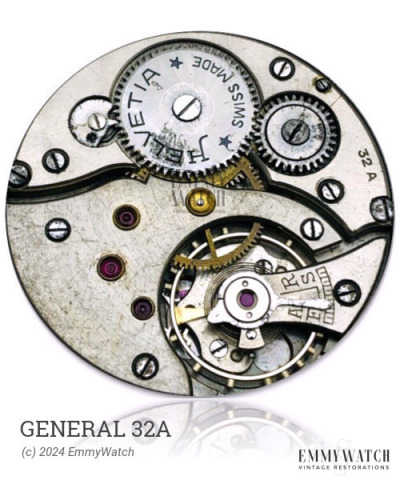

The General 32A is a hunter calibre watch movement that was produced in 1927, with a total production of 600 units. It features a bimetallic screw balance with four adjustment screws, a Breguet hairspring, and a barrel with Geneva stopwork. The movement also includes a two-part crown wheel and patented big bearings for the crown and ratchet wheel. The General 32A is similar to the IWC 52 19'''H5, but it does not have a set lever. It offers the functions of stem winding and setting, as well as a sub-second display. This movement was used from 1889 to 1927.
The General 32A features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.85 x 0.210 x 540 x 17.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
