General 133
(Helvetia)
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 36 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1955
Diameter: 19.7 mm
Height: 4.3 mm
Hands: 1.30 x 0.80 x 0.20 mm
The General 133 watch movement is a manual wind mechanical movement that features a sweep second hand. It is part of the General 133 series, with little known differences between the 400 and 401 models. The movement was manufactured around 1955.
The General 133 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4088 | Ordinary/None | Buy staff |
| 4320 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.090 x 250 x 8.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.090 x 240 x 7.5 mm | GR3218 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents

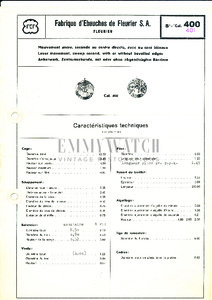

Parts Listing
