General 106
(Helvetia)
Ligne: 12'''
Jewels: 15/17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 27 mm
Height: 3.5 mm
Hands: 1.50 x 0.80 / 0.21 mm

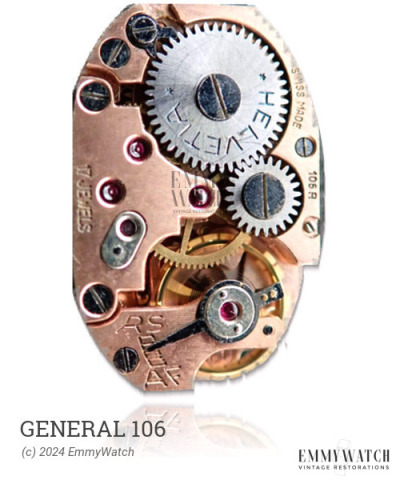

The General 106 is a manual wind watch movement with sub-second functionality. It is often or always denoted as 1120 on the dial side. It falls within a series of movements (including 1120, 1122, 1124, 1126, 1128, 1130, 1132, 1138, and 1288) for which specific differences are not known. The General 106 was utilized in watches during the period around 1960.
The General 106 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.130 x 320 x 10.5 mm | GR4196 | Manual | Buy mainspring |
| 1.50 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
