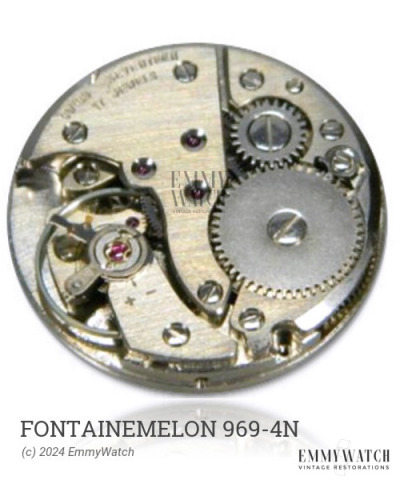

Fontainemelon 969-4N
(Font)
Ligne: 5.75 x 8.5'''
Jewels: 15/16
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 12.8 x 19.6 mm
Height: 3.8 mm
Hands: 1.10 x 0.60 mm
The Fontainemelon 969-4N watch movement, which was patented with a space-saving train design in two layers, offers an optional bimetallic screw balance. Although the specific differences between the 80, 86, 93, 113, 114, 116, 117, 128, 133, 134, 144, 146, 148, 153, 157, 167, and 177 variants are not known, the Fontainemelon 969-4N movement functions as a manual wind movement. It was commonly utilized in watches during the approximate period around 1930.
The Fontainemelon 969-4N features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.080 x 260 x 7.5 mm | GR3923 | Manual | Buy mainspring |
| 1.45 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
