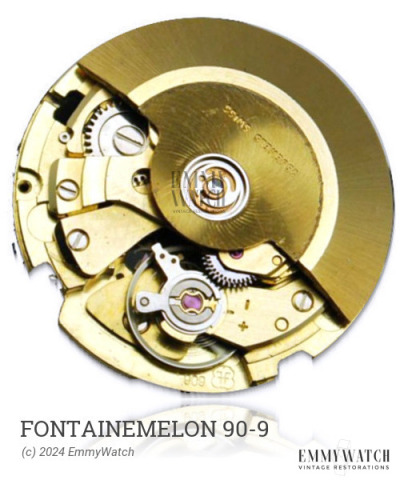

Fontainemelon 90-9
(Font)
Ligne: 11.5'''
Jewels: 17/39
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1965
Diameter: 26 mm
Height: 5.0 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: Girard Perregaux 31
The Fontainemelon 90-9 watch movement is an automatic movement with two roller freewheels, a ball-bearing rotor, and a regulation gear. It belongs to a family of movements based on the manual wind calibre AS 1687/1688. The automatic mechanism is a collaborative effort between Doxa, Eberhard, Favre-Leuba, Girard-Perregaux, and Zodiac. The differences between the 31.19, 31.29, 31.4, and 31.9 variations are not known. The movement's functions include automatic winding and a sweep seconds hand. It was commonly used around 1965.
The Fontainemelon 90-9 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.110 x 10.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
