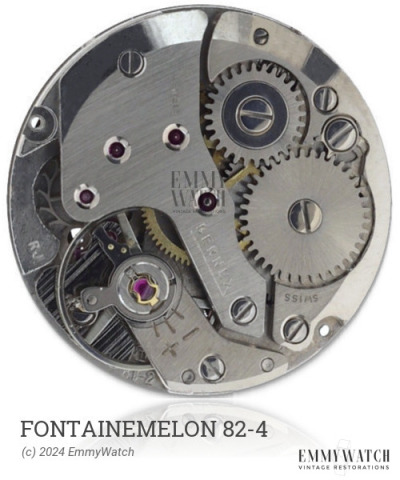

Fontainemelon 82-4
(Font)
Ligne: 10.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.40 x 0.64 / 0.20 mm
The Fontainemelon 82-4 is a mechanical watch movement with functions including manual winding, sub seconds, and variations of both sweep seconds and non-sweep seconds. Its specific differences from the Phenix 110 and 115 movements are not known. The Fontainemelon 82-4 was commonly used around the period of 1935.
The Fontainemelon 82-4 features the following functions:
- Manual Winding
- Sub Second
- Sweep seconds and non-sweep seconds variations
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1974 | Ordinary/None | Buy staff |
| 1991 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 300 x 9.0 mm | GR3698 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
