Fontainemelon 759
(Font)
Jewels: 7
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1899-1903
Diameter: 45.75 mm
Height: 10.1 mm
Hands: 2.46 x 1.27 / 0.30 mm

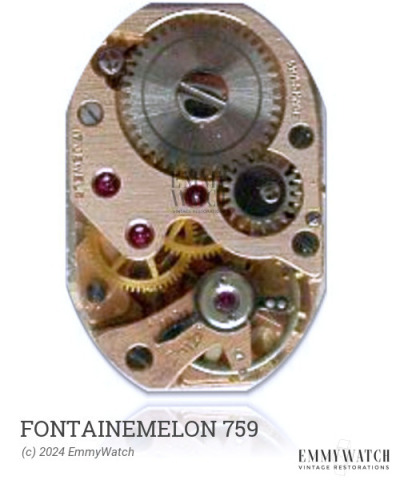

The Fontainemelon 759 watch movement, produced from 1899 to 1903 with a total of 35,000 units, is an open face calibre model 5. It features a bimetallic screw balance and a Breguet hairspring. Notably, it incorporates a ratchet under the base plate and a negative stem mechanism with a rocker bar. Additionally, the movement offers stem wind functionality that can be switched using either the crown or lever, and it includes a sub second feature.
The Fontainemelon 759 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.92 x 0.229 x 570 x 17.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
