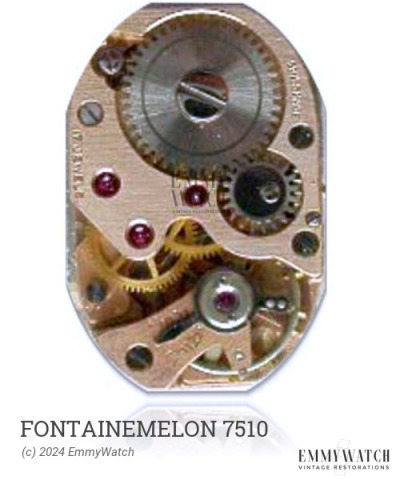

Fontainemelon 7510
(Font)
Ligne: 13'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 29.4 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
The Fontainemelon 7510 watch movement, also known as the Wehrmachtswerk or Germany Military Movement, is part of a line that includes various calibres such as the AS 1130, 1142, 1149, 1243, 1286, 1295, 1304, 1339, 1383, 1387, 1392, 1399, 1401, 1420, 1487, 1502, 1522, 1540, 1542, 1548, 1573, 1597, 1667, and 1685. Among these, the 1667 has a size of 13.5''' while there are two calibres with 13.5''' (1337 and 1511) and two with 14''' (1486 and 1543). Additionally, three calibres in this line feature an indirect sweep second (1155, 1164, and 1195), but they were soon replaced by the AS 1188 with a direct sweep second. The Fontainemelon 7510 movement is a manual wind movement with sub seconds, and it was primarily used around 1955.
The Fontainemelon 7510 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
