Fontainemelon 725
(Font)
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 25.6 mm
Height: 2.8 mm
Hands: 1.30 x 0.70 mm

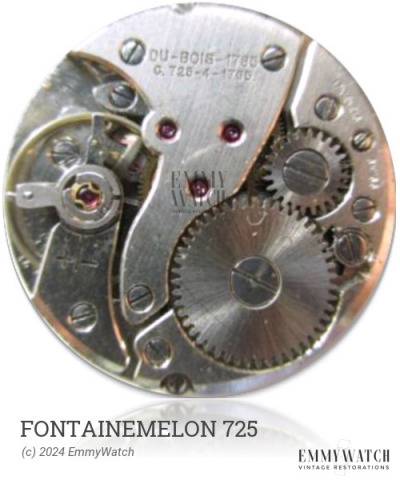

The Fontainemelon 725 watch movement is a manual wind mechanical movement with a sub second function. It is equipped with KIF Shock Protection technology. This movement was prevalent around the time of 1960.
The Fontainemelon 725 features the following functions:
- KIF Shock Protection
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 340 x 9.5 mm | GR2922 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 1.20-.10-340 9,5 | MS-311P | GR 2922 | Buy part |
| MINUTE RECORDING JUMPER | X/1193 | 3054 | Buy part |
| PALLET ARBOR | 72S/268P | 714/AS 1525 | Buy part |
| ROLLER INCA | 82S/293R | Buy part | |
| STAFF, INCABLOC W/SCREW | 100/1815 | Buy part | |
| STEM, FEMALE OA 10.30 SH 4.20 | 360/273 | 360/273 | Buy part |
| STEM, TAP 10 | 200/1258F | 401/AUR 4200 | Buy part |
