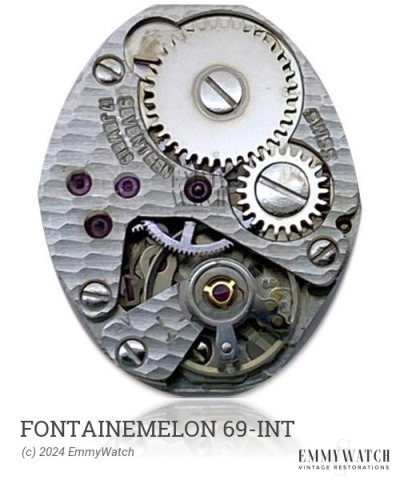

Fontainemelon 69-INT
(Font)
Ligne: 13'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 3.2 mm
Hands: 1.50 x 0.80 / 0.21 mm
The Fontainemelon 69-INT watch movement is a manual wind movement with a sub second function. It falls within the set of Wehrmachtswerk movements, which were used by the Germany Military around the 1960s. The differences between the Fontainemelon 69-INT and other movements in this series, such as the 1560, 1561, 1587, 1589, 1594, 1606, 1609, 1617, 1618, 1623, 1648, and 1697, are not known.
The Fontainemelon 69-INT features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.135 x 340 x 11.0 mm | GR3758 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
