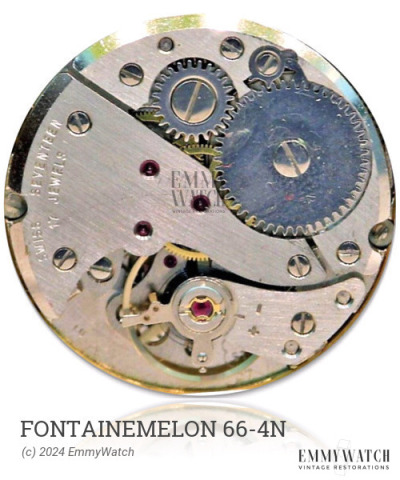

Fontainemelon 66-4N
(Font)
Ligne: 7.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 17.5 mm
Height: 4.0 mm
Hands: 1.20 x 0.70 x 0.20 mm
The Fontainemelon 66-4N watch movement features Kif-Duofix combined settings for the escapement wheel. It supports a manual wind operation and includes a sweep second function. Other notable features include an Adjustable Stud Holder, Incabloc Shock Protection, and the inclusion of a Sweep Seconds hand. The movement was commonly used around 1970.
The Fontainemelon 66-4N features the following functions:
- Adjustable Stud Holder
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.070 x 245 x 7.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.080 x 240 x 7.0 mm | GR3202 | Manual | Buy mainspring |
| 1.30 x 0.070 x 220 x 6.0 mm | GR3186 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
