Fontainemelon 30
(Font)
Ligne: 19'''
Jewels: 15
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 41.65 mm
Height: 5.3 mm
Hands: 2.00 x 1.15 / 0.27 mm

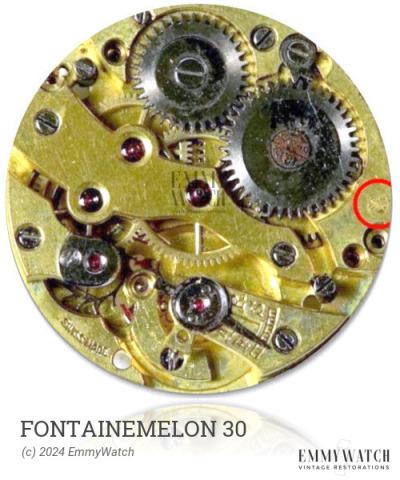

The Fontainemelon 30 is an open face calibre watch movement that offers stem wind and set functionality, along with a sub second feature. The movement potentially includes an optional Breguet hairspring and exhibits varying bridge shapes, such as a possibly left-handed ratchet-wheel screw. There are other calibres, namely 231, 235, 239, 249, 255, 259, 265, 271, 277, 447, 449, 471, 477, and 508, whose distinctions in comparison to the Fontainemelon 30 remain unknown; these appear to be catalog designations associated with different bridge shapes.
The Fontainemelon 30 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.210 x 490 x 17.0 mm | Manual | Buy mainspring | |
| 2.10 x 0.210 x 480 x 16.0 mm | GR6106 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
