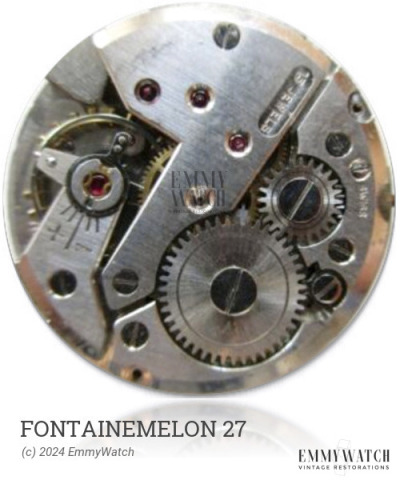

Fontainemelon 27
(Font)
Ligne: 13.5'''
Jewels: 15
Lift Angle: 42°
Power Reserve: 30 hrs
Frequency: 17280 vph
Type: Manual Wind
Period used: ~1960
Diameter: 31.2 mm
Hands: 1.90 x 1.10 x 0.24 mm
The Fontainemelon 27 watch movement from the early 1960s features a pin-lever escapement and an indirect minute hand friction clutch on the barrel. It incorporates a single part that replaces the setting-lever spring, yoke, and yoke spring. Some early samples of the movement also come with a pointed staff. The Fontainemelon 27 movement offers functions such as manual wind, sweep second, and date, among others.
The Fontainemelon 27 features the following functions:
- Date
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.140 x 13.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
