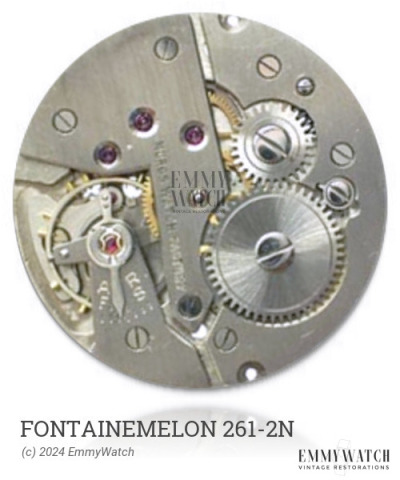

Fontainemelon 261-2N
(Font)
Ligne: 19'''
Jewels: 15
Power Reserve: 31 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 43.15 mm
Height: 6.7 mm
Hands: 1.76 x 1.10 / 0.28 mm
Base: Cyma Tavannes 918
The Fontainemelon 261-2N is an open-face calibre mechanical watch movement with a Breguet hairspring. It features a negative stem mechanism specifically designed for the US market. The movement has functions including stem winding and setting, as well as a sub-second hand. It was commonly used in the 1950s.
The Fontainemelon 261-2N features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.95 x 0.190 x 17.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING, SAMSON | 10475 | Buy part | |
| PALLET FORK AND ARBOR | 710/TAV 998 | Buy part | |
| STAFF, 5.85 O/A | 100/3 | 100/3 | Buy part |
