Fontainemelon 251
(Font)
Ligne: 10.5'''
Jewels: 7/15/17
Lift Angle: 43°
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 23.7 mm
Height: 4.2 mm
Hands: 1.30 x 0.80 / 0.22 mm

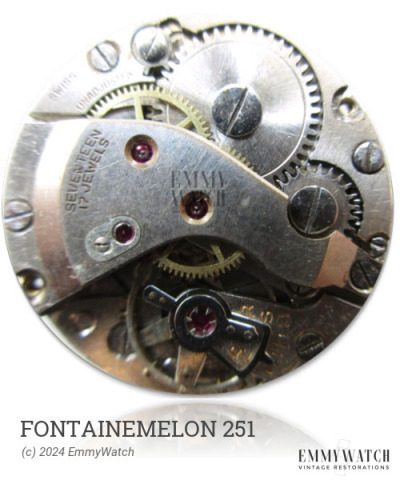

The Fontainemelon 251 watch movement is a manual wind movement with sub-second functionality. The movement incorporates a pin-lever escapement and features a ratchet on the dial side, as well as a crown mechanism with a rocker bar. It bears a close resemblance to the balance screws found in high-end movements. Notably, there is similarity with the 1343 movement, although specific differences between the two are not currently known. The Fontainemelon 251 movement is commonly associated with watches produced around the 1950s.
The Fontainemelon 251 features the following functions:
- Manual Winding
- Pin lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 193 | Ordinary/None | Buy staff |
| 3985 | Ordinary/None | Buy staff |
| 2938 | Kif | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.85 x 0.105 x 280 x 9.0 mm | GR5463 | Manual | Buy mainspring |
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
