Fontainemelon 224
(Font)
Ligne: 8.75 x 9.75'''
Jewels: 17
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1940-1948
Size: 19.4 x 22.35 mm
Height: 4.6 mm
Hands: 1.22 x 0.66 / 0.16 mm
Base: Gruen 430

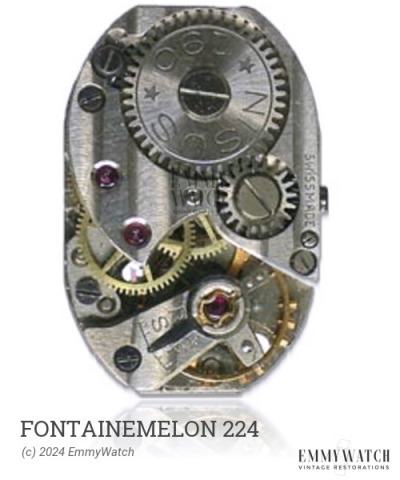

The Fontainemelon 224 watch movement, produced between 1940 and 1948, features a Breguet hairspring and a stem mechanism without a setting-lever spring. This manual wind movement also includes a sub-second function.
The Fontainemelon 224 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1182 | Ordinary/None | Buy staff |
| 1164 | Ordinary/None | Buy staff |
| 4811 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.110 x 240 x 8.0 mm | GR2946 | Manual | Buy mainspring |
| 1.18 x 0.105 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.10 x 0.110 x 240 x 8.5 mm | GR2631 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
