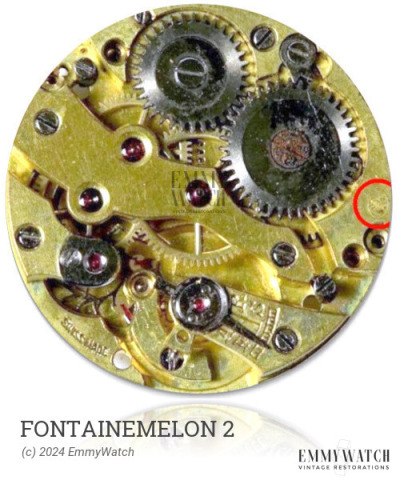

Fontainemelon 2
(Font)
Ligne: 11.5'''
Jewels: 17/23
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 4.6 mm
Hands: 1.30 x 0.90 x 0.20 mm
The Fontainemelon 2 watch movement is a manual wind movement with a pin-lever escapement. It features a ratchet on the dial side and a crown mechanism with a rocker bar. This movement includes sweep seconds functionality and operates using a pin lever. It was commonly used during the period of approximately 1965.
The Fontainemelon 2 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
