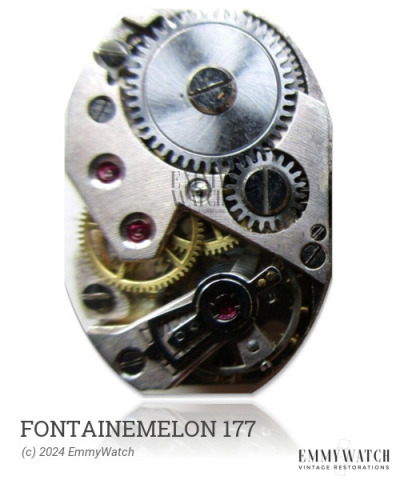

Fontainemelon 177
(Font)
Ligne: 8 x 9.5'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 18.5 x 22.1 mm
Height: 4.8 mm
Hands: 1.32 x 0.78 x 0.18 mm
The Fontainemelon 177 watch movement is a manual wind movement that features a sweep second function. It is similar to the 231 movement in terms of design but potentially has a thinner hand-gear plate due to the sweep second post not protruding out of the cannon pinion. This movement was commonly used around the period of 1950.
The Fontainemelon 177 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3083 | Ordinary/None | Buy staff |
| 3931 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 300 x 9.0 mm | GR3254 | Manual | Buy mainspring |
| 1.30 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.095 x 260 x 8.0 mm | GR3234 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
