Fontainemelon 144
(Font)
Ligne: 13'''
Jewels: 17
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.21 mm

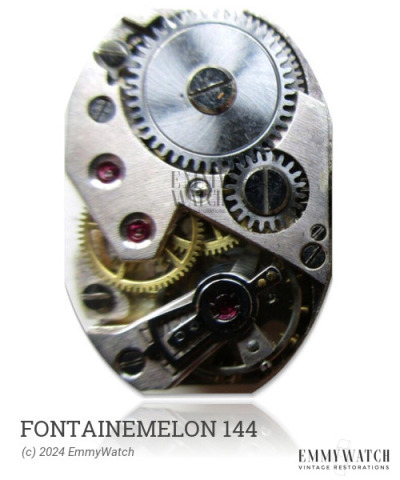

The Fontainemelon 144 is a manual wind watch movement that features a sweep second hand. It is likely a transitional version between the 1604 and 1604N models, and is equipped with an adjustable stud carrier but still has a cap jewel plate for the escape wheel. The signature of the movement includes the letter "R" added separately to the 1604 designation. The movement also exhibits different bridge shapes. It was used in watches produced around the period of 1960.
The Fontainemelon 144 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.140 x 330 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
