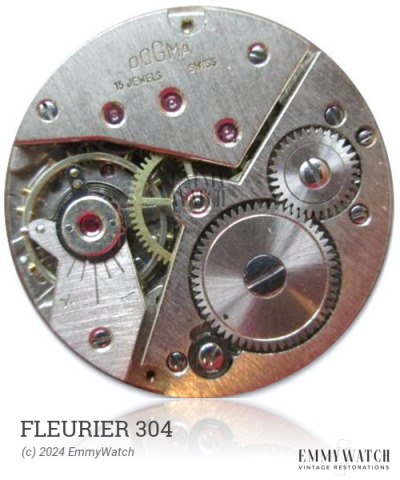

Fleurier 304
Ligne: 10.5'''
Jewels: 7/17/23
Lift Angle: 52°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm
Base: Ronda 1013
The Fleurier 304 is a mechanical watch movement that features a stem mechanism without a setting-lever spring. It has a unique design where the train and hand gear are driven separately by the barrel. This movement offers functions such as manual winding and a sweep seconds hand. It was popularly used around the 1970s.
The Fleurier 304 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5200 | Ordinary/None | Buy staff |
| 5199 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 360 x 10.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.100 x 360 x 9.5 mm | GR3667 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
