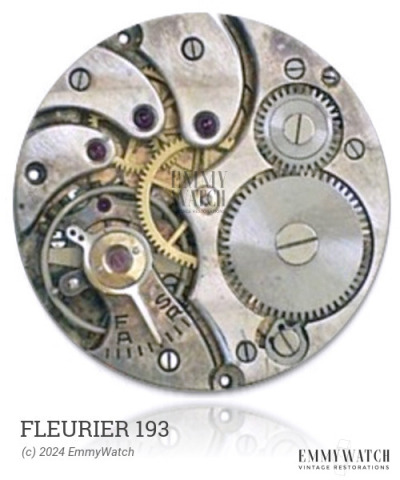

Fleurier 193
Jewels: 17
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1895-1899
Diameter: 43.1 mm
Height: 6.65 mm
Hands: 1.65 x 0.92 / 0.25 mm
The Fleurier 193 is a mechanical watch movement that was produced between 1895 and 1899, with a total of 9100 units manufactured during that period. This open face calibre, known as model 7, features a bimetallic screw balance and a Breguet hairspring, ensuring precise timekeeping. It incorporates a negative stem mechanism which allows for easy switching between winding and setting the time. Additional functions of the Fleurier 193 include stem wind, which can be switched using either the crown or the lever, as well as a sub-second display.
The Fleurier 193 features the following functions:
- Stem wind
- Sub Second
- Switching by crown or lever
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.60 x 0.205 x 540 x 17.0 mm | GR6806DBH | DBH | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
