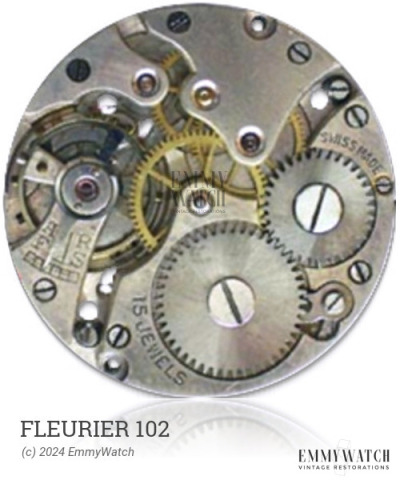

Fleurier 102
Ligne: 13'''
Jewels: 15/17
Lift Angle: 49°
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 29.4 mm
Height: 4.6 mm
Hands: 1.50 x 0.90 / 0.21 mm
The Fleurier 102 watch movement is a manual wind movement with a sub-second function and a date feature that is set by changing 22-24h. While the differences between the 6410, 6411, 6412, and 6417 are unknown, it is possible that these variations simply refer to different bridge shapes.
The Fleurier 102 features the following functions:
- Date: set by changing 22-24h
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2394 | Ordinary/None | Buy staff |
| 5161 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.135 x 360 x 11.5 mm | GR5171 | Manual | Buy mainspring |
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA 240X19 THICK | 400/1 | 180.19/INCA #11 | Buy part |
| INCA UNIT COMPL, LOW D160 H11 | 400/34 | 100.20.11/INCA | Buy part |
| JEWEL, INCA BALANCE 135X50X11 | 400/13 | 111.11/INCA #10 | Buy part |
| JEWEL, INCA UPPER CAP 120X27 | 400/7 | 121.11/INCA #5 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| SCREW, INCA 18X50 | 400/2 | 150.11/INCA #14 | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| SHOCK UNIT, UPPER INC D360 H11 | 400/237 | 100.11.360.11 | Buy part |
