Femga 502
Ligne: 10.5'''
Jewels: 15
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1939-
Diameter: 23.4 mm
Height: 4.1 mm
Hands: 1.22 x 0.66 / 0.16 mm

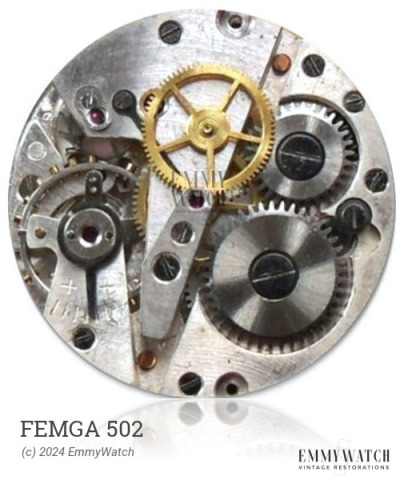

The Femga 502 watch movement, developed during the period 1939-, features a Breguet hairspring and a stem mechanism without a setting-lever spring. It is a manual wind movement with a sub second function.
The Femga 502 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.110 x 250 x 9.0 mm | Manual | Buy mainspring | |
| 1.10 x 0.110 x 260 x 8.5 mm | GR2632 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 1.15-.11-254 | MS-2510F | GR 2632 | Buy part |
