Return To ShopWatch Database

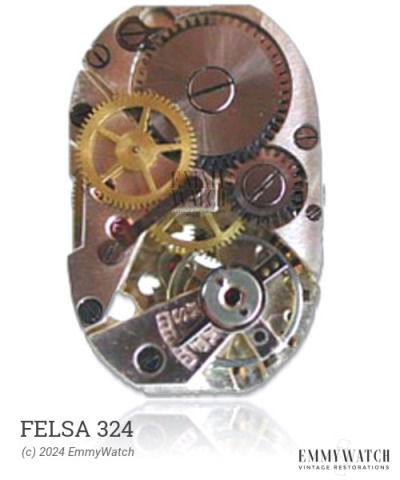

Felsa 324
Ligne: 11.5'''
Jewels: 15
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Height: 3.8 mm
Hands: 1.40 x 0.90 / 0.20 mm
The Felsa 324 watch movement features jewel bearings for the barrel and an integrated automatic gear within the movement itself, as opposed to attaching it to a manual-wind calibre. This design enables a sturdy movement with a relatively large balance and low profile. The initial samples utilized ruby-ball bearings but did not include jewels for the automatic gears. This movement includes functions such as manual wind, sub-second, and date. It was prevalent during the approximate period of 1945.
The Felsa 324 features the following functions:
- Date
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1463 | Ordinary/None | Buy staff |
| 5059 | Ordinary/None | Buy staff |
| 2750 | Incabloc | Buy staff |
| 5059 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.110 x 260 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
