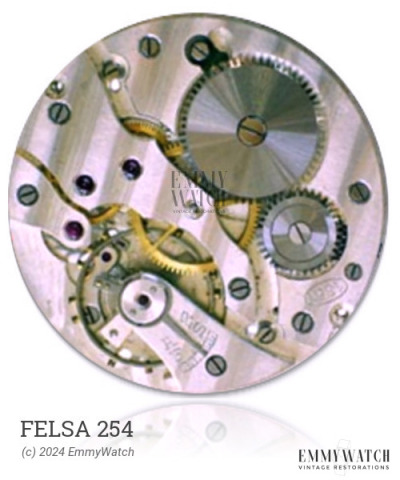

Felsa 254
Ligne: 11.5'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1972-
Diameter: 26 mm
Height: 3.8 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Felsa 254 watch movement, introduced in 1972, initially featured a separate click and click-spring design in its early samples. However, later versions of the movement adopted a single-part click mechanism. This manual wind movement also includes the function of a sweep second hand. The Felsa 254 movement has been used from 1972 onwards.
The Felsa 254 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.120 x 340 x 10.0 mm | GR3515 | Manual | Buy mainspring |
| 1.30 x 0.105 x 340 x 10.0 mm | GR3270 | Manual | Buy mainspring |
| 1.30 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
