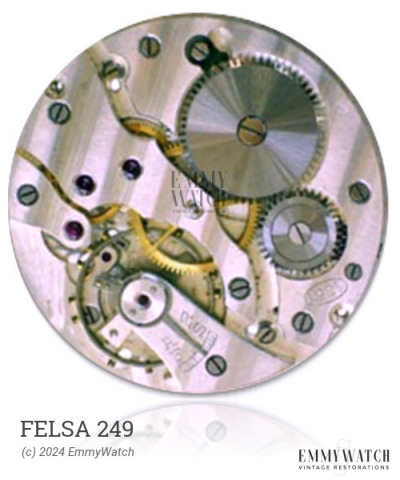

Felsa 249
Ligne: 18'''
Jewels: 6
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1910
Diameter: 41.05 mm
Height: 7.0 mm
Hands: 1.85 x 0.55 mm
Base: Langendorf 21
The Felsa 249 watch movement features a cylinder escapement and an alarm wheel with a setting hand beared in dial. The alarm setting is only counterclockwise. It includes a ratchet on the dial side, and a crown mechanism with a single-arm rocker bar. This movement has stem wind and pin set alarm functionality. It is equipped with an adjustable stud holder and incorporates Incabloc shock protection. The Felsa 249 movement was commonly used in watches around the year 1910.
The Felsa 249 features the following functions:
- Adjustable Stud Holder
- Incabloc Shock Protection
- Stem wind and pin set alarm
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5023 | Ordinary/None | Buy staff |
| 5187 | Ordinary/None | Buy staff |
| 5187 | Incabloc | Buy staff |
| 5023 | Shockproof | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.070 x 200 x 6.0 mm | GR3185 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
