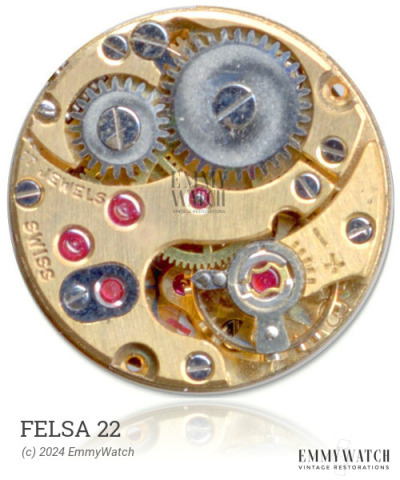

Felsa 22
Ligne: 5.75 x 8.5'''
Jewels: 15/17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.85 x 19.55 mm
Height: 3.7 mm
Hands: 1.00 x 0.55 mm
Base: A. Schild 1051
The Felsa 22 is a manual wind watch movement that was produced around 1945. It shares similarities with other movements such as the 1051, 1085, 1102, 1108, 1258, 1262, 1271, 1275, 1292, 1296, 1301, 1324, 1374, 1385, and 1452. It also features a sweep second function, distinguishing it from the 1152 movement.
The Felsa 22 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.075 x 280 x 7.5 mm | GR4069 | Manual | Buy mainspring |
| 1.50 x 0.075 x 260 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
