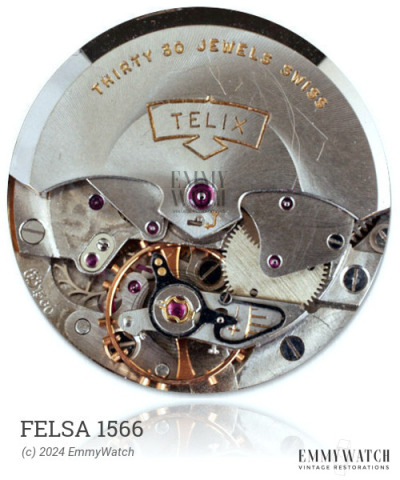

Felsa 1566
Ligne: 11.5'''
Jewels: 23/20
Lift Angle: 56°
Power Reserve: 46 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1968-
Diameter: 26 mm
Height: 4.45 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Felsa 1566 watch movement, which has been used since 1968, features combined settings for the escape wheel and third wheel, as well as an integrated winding gear. This design allows for a robust movement with a relatively large balance and low profile. In addition, the movement includes various functions such as automatic winding, sweep seconds, day display with quickset in two languages, date display with quickset, and a hack feature.
The Felsa 1566 features the following functions:
- Automatic Winding
- Date: quickset
- Day and Date Display
- day: quickset, 2 languages
- Hack feature
- Sweep second function
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.120 x 340 x 10.5 mm | GR2653X | Auto | Buy mainspring |
| 1.10 x 0.118 x 340 x 10.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
