Excelsior Park 5
(Excelsior, EP)
Ligne: 13'''
Jewels: 0/1
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 29.33 mm
Height: 4.5 mm
Hands: 1.90 x 1.10 mm

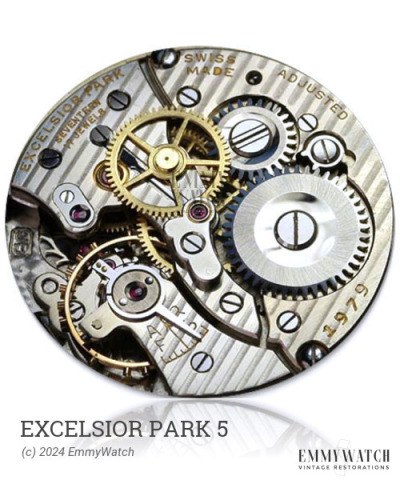

The Excelsior Park 5 watch movement features a pin-lever escapement. It is equipped with an indirect minute hand friction clutch on the barrel, as well as a flying barrel mechanism. Notably, the movement's design incorporates a single part that replaces the setting-lever spring, yoke, and yoke spring. Functions of the Excelsior Park 5 movement include manual wind, sub second, and date setting accomplished by changing 21:30-24h. This movement was commonly used during the period around 1970.
The Excelsior Park 5 features the following functions:
- Date: set by changing 21:30-24h
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.110 x 630 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
