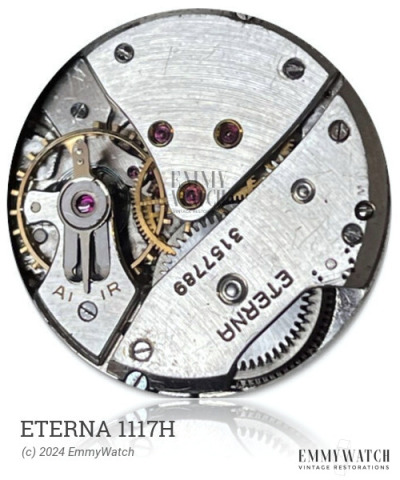

Eterna 1117H
Ligne: 10.5'''
Jewels: 17
Lift Angle: 52°
Frequency: 21600 vph
Type: Manual Wind
Period used: 1968-
Diameter: 23.7 mm
Height: 3.5 mm
Hands: 1.40 x 0.80 / 0.20 mm
The Eterna 1117H is a manual wind mechanical watch movement that features a sub second function and a date function that can be set by changing the time to 19:15-24h. This movement was used during the time period starting from 1968.
The Eterna 1117H features the following functions:
- Date: set by changing 19:15-24h
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5357 | Ordinary/None | Buy staff |
| 5357 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 340 x 9.5 mm | GR4488 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
