ETA 983
Ligne: 13'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 3.2 mm
Hands: 1.50 x 0.80 / 0.21 mm

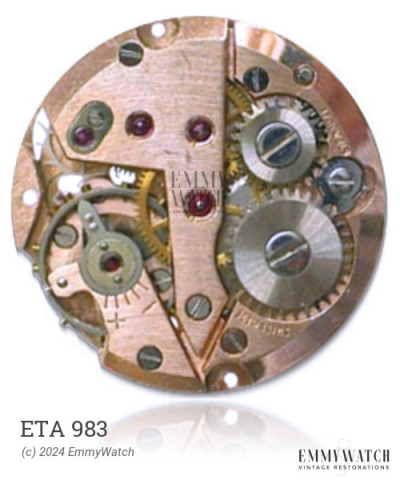

The ETA 983 watch movement, part of the Wehrmachtswerk (Germany Military Movement), shares similarities with other A. Schild movements such as the 1560, 1561, 1587, 1589, 1594, 1606, 1609, 1616, 1617, 1618, 1623, and 1697. It features manual wind and sub seconds. This movement was commonly used around 1960.
The ETA 983 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.135 x 340 x 11.0 mm | GR3758 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
