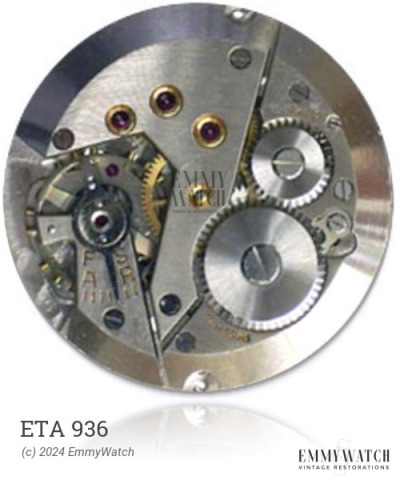

Return To ShopThe ETA 936 watch movement, which was used approximately in the 1960s, is a manual wind movement featuring a sub-second function. It is equipped with Incabloc Shock Protection, ensuring enhanced durability. Variations in the combined setting for the escapement wheel and/or mobile stud carrier exist in later samples of this movement. Moreover, there may be differences in bridge shapes between the 4200-4202 and 4205-4207 designations, although specific details are unknown.
The ETA 936 features the following functions:
Ronda Reference # | Shock System | Buy |
---|
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.20 x 0.100 x 340 x 9.5 mm | GR2922 | Manual | Buy mainspring |
1.20 x 0.100 x 320 x 9.0 mm | GR2921 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
---|---|---|---|
See More |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
GIB/BOLT INCA 220X17 | 400/1416 | 280.17/INCA #38 | Buy part |
JEWEL, INCA BALANCE 105X42X10 | 400/42 | 211.10/INCA #27 | Buy part |
JEWEL, LOWER CAP INCA 90X13 | 400/68 | 222.11/INCA #23 | Buy part |
LOWER UNIT D320 H10 | 400/888 | 219.20.10 | Buy part |
MAINSPRING 1.20-.10-340 9,5 | MS-311P | GR 2922 | Buy part |
PALLET ARBOR | 72S/268P | 714/AS 1525 | Buy part |
ROLLER INCA | 82S/293R | Buy part | |
SCREW, INCA SHOCK .15X.50 | 400/809 | 150.21/INCA #14 | Buy part |
SPRING,INCA U/L SHOCK 172X114 | 400/66 | 270.02-3/INCA #21 | Buy part |
STAFF, INCABLOC W/SCREW | 100/1815 | Buy part | |
STEM, FEMALE OA 10.30 SH 4.20 | 360/273 | 360/273 | Buy part |
STEM, TAP 10 | 200/1258F | 401/AUR 4200 | Buy part |
UPPER UNIT | 241.21.300.10 | Buy part |
