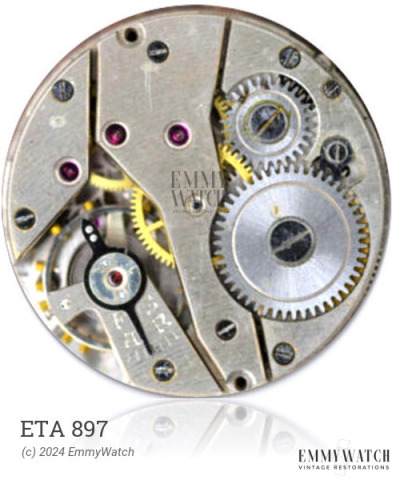

ETA 897
Ligne: 12'''
Jewels: 1
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 27.15 mm
Height: 4.2 mm
Hands: 1.28 x 0.98 x 0.29 mm
The ETA 897 watch movement features a pin-lever escapement and indirect second and minute mechanisms. It includes a ratchet on the dial side and a crown mechanism with a rocker bar. The back side of the movement is painted in a golden color. Late samples of this movement have a mobile stud carrier. The watch movement offers manual winding and includes a sweep second function.
The ETA 897 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
