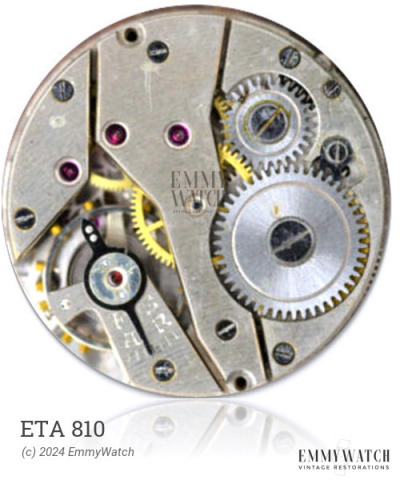

ETA 810
Ligne: 11.5'''
Jewels: 17/23
Lift Angle: 43°
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 25.6 mm
Height: 5.0 mm
Hands: 1.30 x 0.90 x 0.20 mm
The ETA 810 watch movement incorporates a pin-lever escapement, with a ratchet on the dial side and a crown mechanism featuring a rocker bar. This movement offers manual winding capability and includes a sweep second hand and calendar function that can be set by +/-24 hours.
The ETA 810 features the following functions:
- Calendar
- Date: set by +/-24h
- Manual Winding
- Pin lever
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
