Return To ShopWatch Database

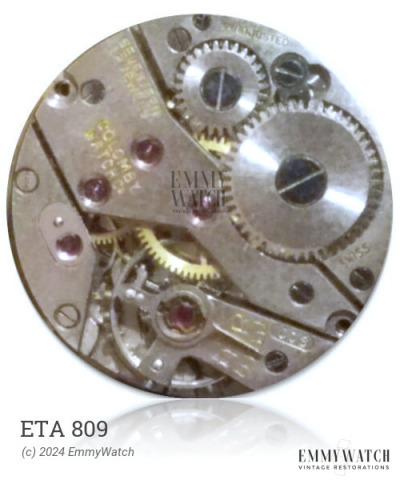

ETA 809
Ligne: 4.5 x 10.25'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Size: 10 x 23.1 mm
Height: 3.6 mm
Hands: 1.10 x 0.60 mm
The ETA 809 watch movement is known to be widely comparable to the ETA 651 through 655 and 658. This manual wind movement features covered winding and was commonly used around 1935.
The ETA 809 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.070 x 210 x 6.5 mm | Manual | Buy mainspring | |
| 1.00 x 0.075 x 220 x 6.5 mm | GR2407 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
