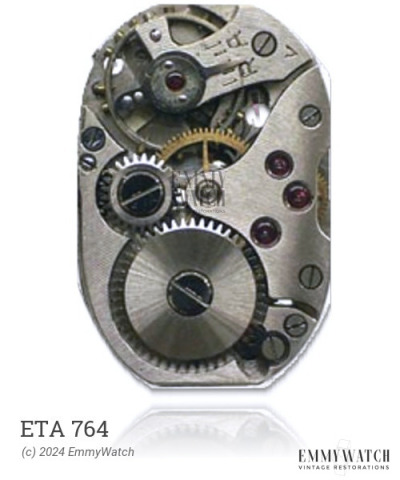

ETA 764
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 / 0.22 mm
The ETA 764 watch movement, also known as the AS 562, is part of a family of movements that includes variations such as the AS 341, 346, 347, 349, 363, 384, 389, 436, 464, 514, 583, 708, 932, and 934. It features manual winding and a sub-second function. The movement was commonly used around the year 1936.
The ETA 764 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
