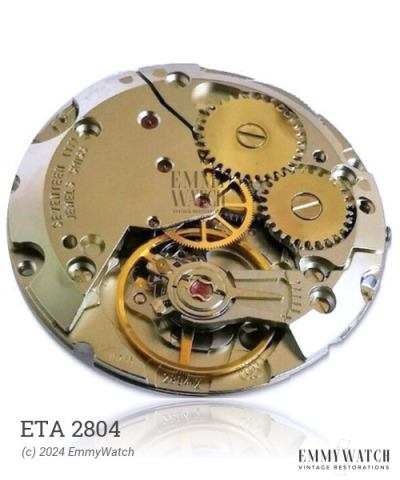

ETA 2804
Ligne: 7.75'''
Jewels: 17/19
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1958-1967
Diameter: 17.5 mm
Height: 4.1 mm
Hands: 1.20 x 0.70 x 0.20 mm
Base: ETA 2363
The ETA 2804 watch movement was produced between 1958 and 1967. In 1964, a transition was made from a fixed to a mobile stud carrier. The movement features an indirectly driven minute hand, enabling a large balance and a low profile. It offers manual winding functionality and includes sweep seconds. Additionally, it has a date function that can be set by adjusting the 21-24 hour marker.
The ETA 2804 features the following functions:
- Date: set by changing 21-24h
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4988 | Ordinary/None | Buy staff |
| 4988 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 240 x 7.0 mm | GR3202 | Manual | Buy mainspring |
| 1.30 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
