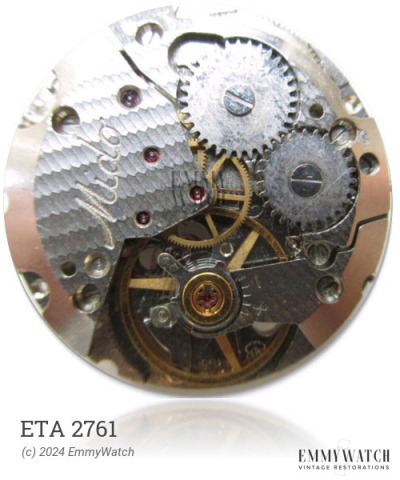

ETA 2761
Ligne: 8.75'''
Jewels: 15/17
Lift Angle: 50°
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 19.8 mm
Height: 3.97 mm
Hands: 1.45 x 0.80 mm
Base: Revue 79
The ETA 2761 is a mechanical watch movement with various bridge layouts. It features manual winding, sweep seconds, and was used during the approximate period of 1945.
The ETA 2761 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2804 | Ordinary/None | Buy staff |
| 2766 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.085 x 260 x 7.5 mm | GR3212 | Manual | Buy mainspring |
| 1.30 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring | |
| 1.30 x 0.080 x 240 x 7.0 mm | GR3202 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| JEWEL, LOWER WINDING GEAR | A/6550 | 4038/OME 1001 | Buy part |
| MAINSPRING 1.30-.08-240 7 | MS-413E | GR 3202 | Buy part |
| ROLLER 180X80X36 | 82S/41R | Buy part | |
| ROLLER, INCABLOC 180X80X36 | 82S/148R | 730/AUR 18 | Buy part |
| STAFF | 100/836 | Buy part | |
| STAFF, INCA | 100/2155 | Buy part | |
| STEM | 200/843F | Buy part |
