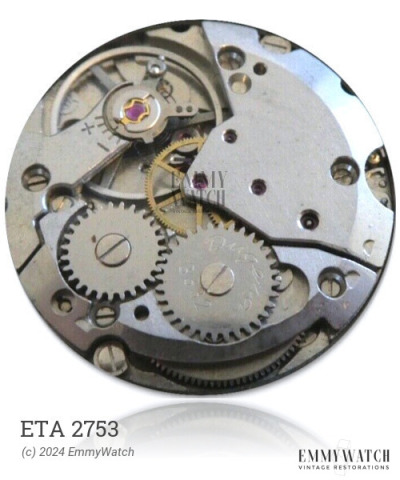

ETA 2753
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1904-1927
Diameter: 43.1 mm
Height: 6.65 mm
Hands: 1.65 x 0.92 / 0.25 mm
The ETA 2753 watch movement, produced from 1904 to 1927 with a total of 366,000 units, is a hunter calibre, model 6. It features a bimetallic screw balance, Breguet hairspring, and a negative stem mechanism. The in lever position allows for switching between winding and setting with the stem. The escapement is modified compared to models like 210. Additional functions include stem wind with switching options using the crown or lever, as well as a sub second display.
The ETA 2753 features the following functions:
- Stem wind, switchable by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.64 x 0.190 x 560 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

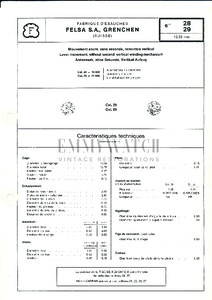

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
