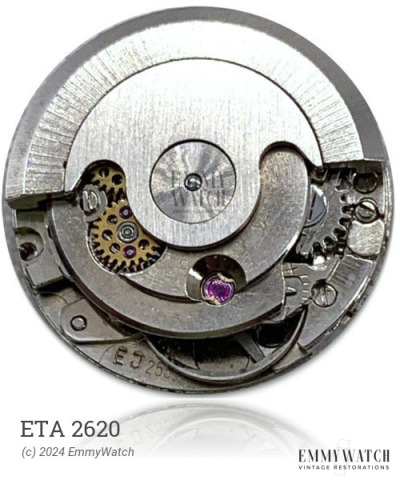

ETA 2620
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1950
Diameter: 26 mm
Height: 7.15 mm
Hands: 1.30 x 0.90 x 0.22 mm
The ETA 2620 watch movement is a detached manual wind movement that shares similarities with the A. Schild 1395 movement, although specific differences between the two are not known. The movement includes various functions such as automatic winding, sweep seconds, and a day feature that does not have a quickset. Additionally, the date can be set using a pusher located at the 2 o'clock position. The ETA 2620 movement was commonly used during the approximate time period of 1950.
The ETA 2620 features the following functions:
- Automatic Winding
- Date function set by pusher at 2 o'clock
- Day function without quickset
- Sweep second function
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 280 x 8.5 mm | GR3952X | Auto | Buy mainspring |
| 1.45 x 0.100 x 250 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
