ETA 2539R
Ligne: 12'''
Jewels: 17
Lift Angle: 55°
Power Reserve: 46 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1968-1975
Diameter: 27.4 mm
Height: 5.25 mm
Hands: 1.50 x 0.90 x 0.20 mm

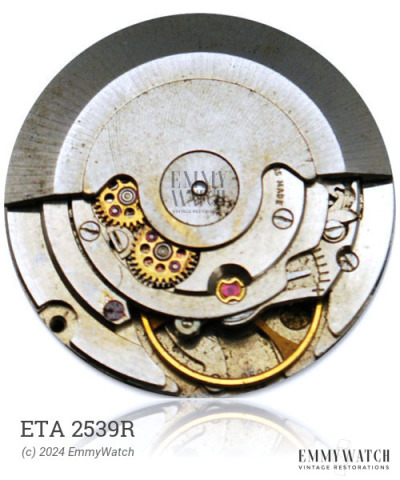

The ETA 2539R is a mechanical watch movement that was utilized between 1968 and 1975. It is equipped with a sophisticated excenter self-winding mechanism featuring only one gear stage. The movement incorporates various functions including automatic winding, a 12h- and 24h display with center hands, a sweep second hand, and a date feature with quickset capabilities. Additionally, it incorporates an adjustable stud holder and shock protection to enhance its durability and accuracy.
The ETA 2539R features the following functions:
- 12h- and 24h display, center hands
- Adjustable Stud Holder
- Automatic Winding
- Calendar
- Date: quickset
- No Manual Wind
- Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
