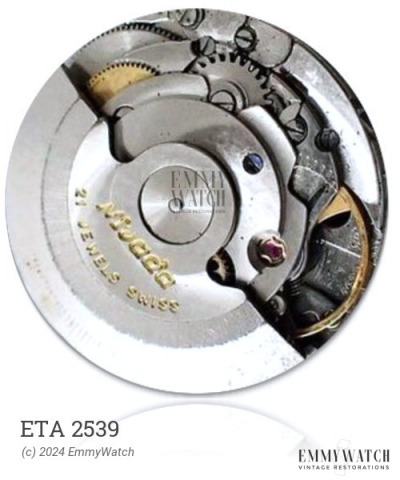

ETA 2539
Ligne: 12'''
Jewels: 17
Lift Angle: 53°
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1991
Diameter: 27.4 mm
Height: 4.9 mm
Hands: 1.50 x 0.90 x 0.20 mm
The ETA 2539 watch movement features a sophisticated excenter self-winding mechanism, consisting of just one gear stage. This automatic movement does not have a manual winding function and includes a sweep second hand. It incorporates a quickset date function at 3:00, allowing for convenient adjustment. Designed for use around 1991, the movement indicates hours, minutes, and central seconds.
The ETA 2539 features the following functions:
- Automatic Winding
- Central seconds
- Date: quickset
- Hours
- Minutes
- No Manual Wind
- Quickset date at 3:00
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
