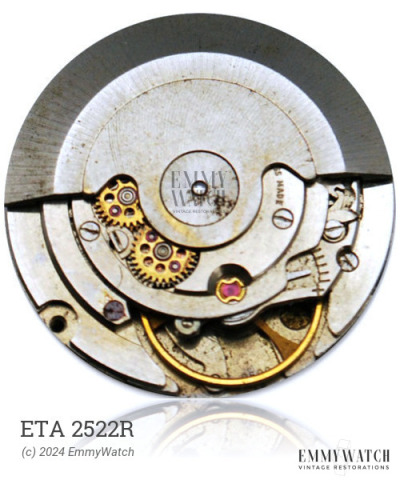

ETA 2522R
Ligne: 7.75'''
Jewels: 17/23
Lift Angle: 48°
Power Reserve: 32 hrs
Frequency: 28800 vph
Type: Automatic
Period used: ~1968
Diameter: 17.2 mm
Height: 5.85 mm
Hands: 1.10 x 0.65 x 0.15 mm
The ETA 2522R is a mechanical watch movement with a ball-bearing rotor. It is an automatic movement that features a sweep second hand, a quickset day display in two languages, and a quickset date display. The movement also includes an Adjustable Stud Holder and Shock Protection. Its period of use is approximately around 1968.
The ETA 2522R features the following functions:
- Adjustable Stud Holder
- Automatic Winding
- Date: quickset
- Day and Date Display
- day: quickset, 2 languages
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
