Return To ShopWatch Database

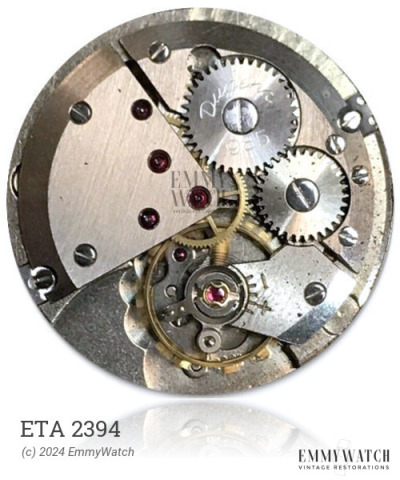

ETA 2394
Ligne: 8.75'''
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 19.7 mm
Height: 3.4 mm
Hands: 1.20 x 0.60 / 0.11 mm
Base: Venus 60
The ETA 2394 watch movement is part of a series that includes various models such as the 60-III, 61 through 64, 68, 72, 77, 81, 86, 93, 96, 99, 102, 104, 107, 108, and 154. The movement features manual winding and a sub-second function. It was commonly used around 1925. However, there is limited information available on the specific differences between the different models within this series or the bridge shapes used in the ETA 2394 movement.
The ETA 2394 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.080 x 215 x 7.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.085 x 220 x 7.0 mm | GR3613 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
