ETA 2393
Ligne: 13'''
Jewels: 6/15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 29.33 mm
Hands: 1.60 x 0.95 mm

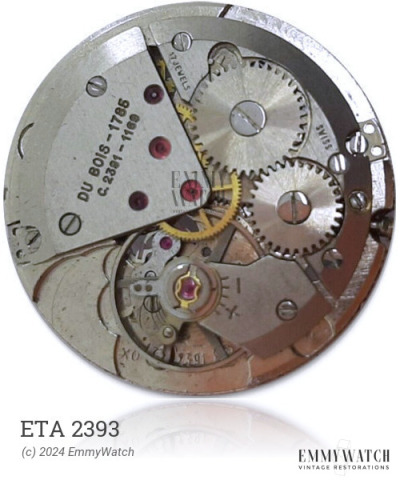

The ETA 2393 watch movement is a hunter calibre, and its differences from 13'''B and 371 are not known. It offers stem wind and set functionality, along with a sub second feature. The movement also supports right setting and was commonly used around the period of 1930.
The ETA 2393 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.125 x 340 x 10.5 mm | GR4552 | Manual | Buy mainspring |
| 1.60 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 340 x 10.0 mm | GR4516 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CLUTCH | 407/TAV 370 | Buy part | |
| MAINSPRING 1.60-.11-340 10 | MS-710P | GR 4516 | Buy part |
| MINUTE WHEEL | 260/824 | Buy part | |
| PALLET ARBOR | 72S/180P | 714/AS 552 | Buy part |
| SET WHEEL | 450/TAV 370 | Buy part | |
| STAFF | 100/241 | Buy part | |
| STEM | 200/797F | Buy part | |
| THIRD WHEEL | 210/TAV 370 | Buy part |
