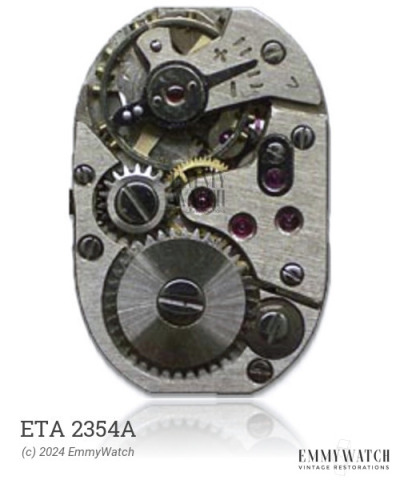

ETA 2354A
Ligne: 8.75 x 10'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 20.05 x 22.7 mm
Height: 4.4 mm
Hands: 1.40 x 0.82 / 0.18 mm
Base: Osco 50
The ETA 2354A watch movement is equipped with a ratchet on the dial side and a crown mechanism with a rocker bar. This movement offers manual winding and has a sub-second function. It was primarily used during the period of approximately 1945.
The ETA 2354A features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
