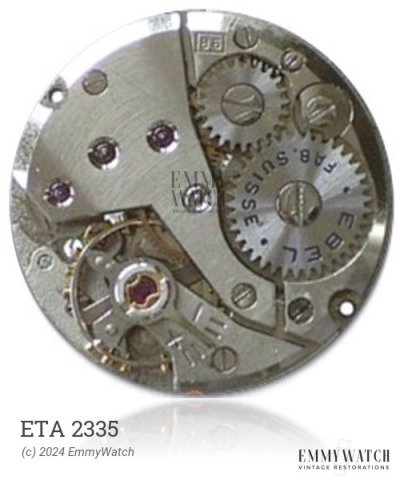

ETA 2335
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: 1940-1950
Diameter: 37 mm
Height: 4.5 mm
The ETA 2335 watch movement, produced in the period of 1940-1950 with 122,000 units produced, is an open face calibre model 5. It features a monometallic screw balance and a Breguet hairspring. The movement includes functions such as stem winding and setting, as well as a sub second indicator.
The ETA 2335 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE | 5830/ELG | 5830/ELG | Buy part |
| BALANCE WHEEL | 5829/ELG | 4-546/ELG | Buy part |
| BARREL ARBOR | 5761/ELG | 1-542/ELG | Buy part |
| BARREL/COVER | 5766/ELG | 6-542/ELG | Buy part |
| CENTER WHEEL COMPLETE | 5793/ELG | 281-542/ELG | Buy part |
| ESCAPE WHEEL COMPLETE | 5795/ELG | 283-542/ELG | Buy part |
| FOURTH WHEEL | 5797/ELG | 284-542/ELG | Buy part |
| HAIRSPRING, BREQUET STH 2 10/S | 5648/ELG | Buy part | |
| LWRCENTER BUSHING | 5828/ELG 546 | 17-546/ELG | Buy part |
| MAINSPRING 7.5-4.8-17.5 DBH | MS-JA111A | 6001/ELG 10/S | Buy part |
| RATCHET WHEEL USE 5801C4 | 5801C11/ELG | 290-546/ELG | Buy part |
| SCREW, UP/LOW BALANCE JEWEL | 1604/ELG | Buy part | |
| STAFF, 10/S P11 264-542 | 22BB/14B | 22BB/14B | Buy part |
| STEM | 5763/ELG | 3-542/ELG | Buy part |
| THIRD WHEEL, COMPLETE | 5805/ELG | 295-546/ELG | Buy part |
| UPPER CENTER BUSHING | 5827/ELG 546 | 16-546/ELG | Buy part |
